ULTRA R9000

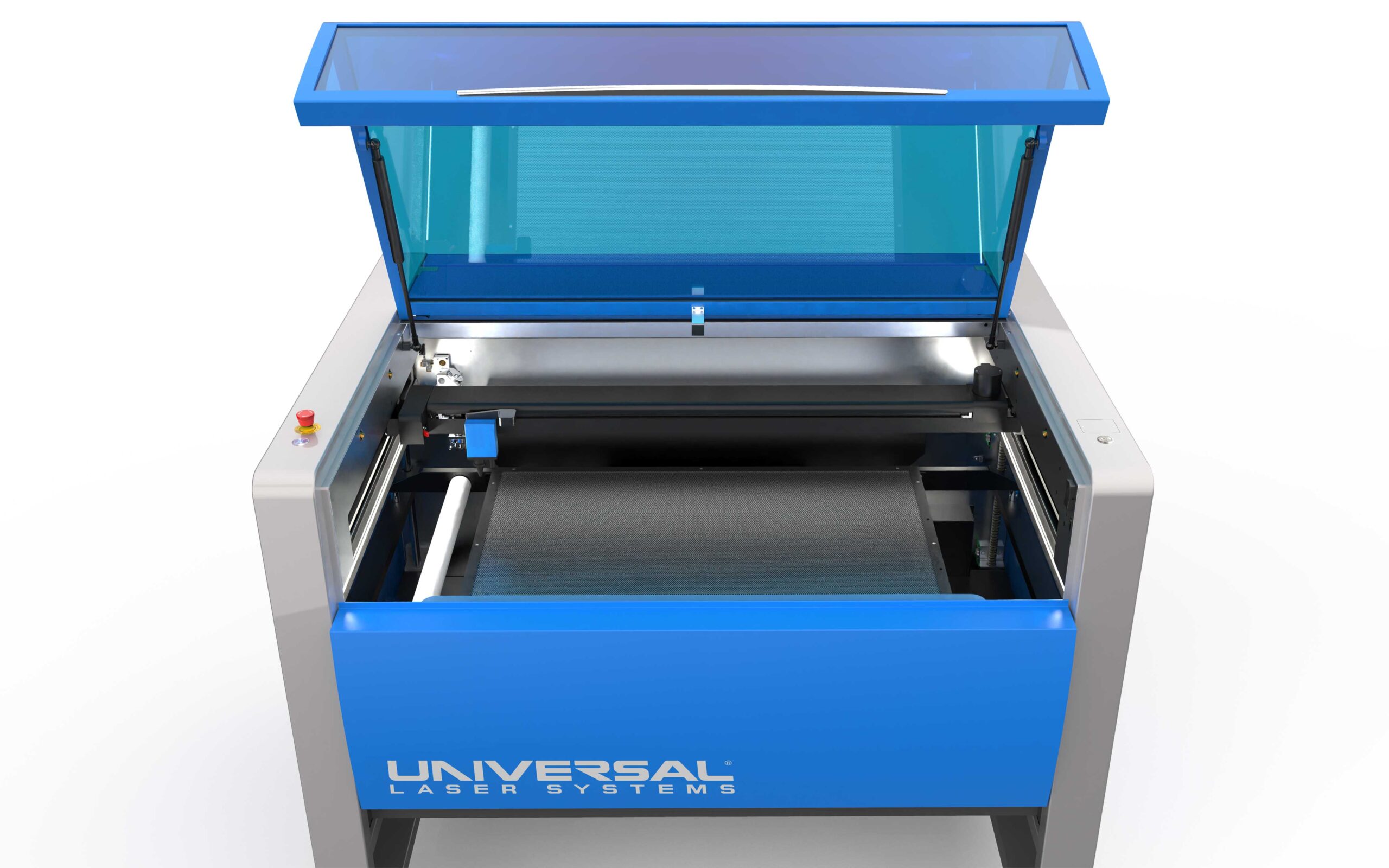

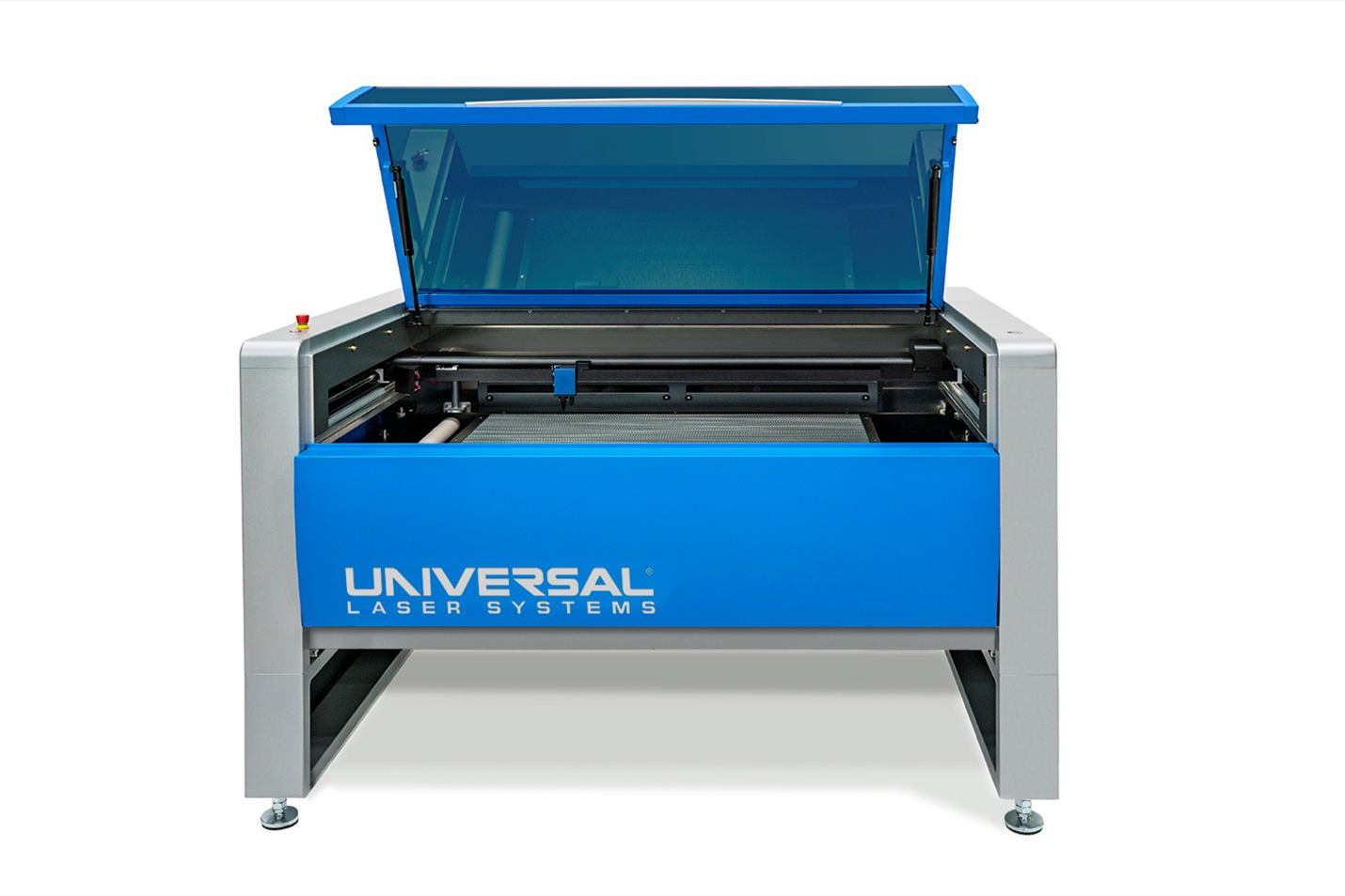

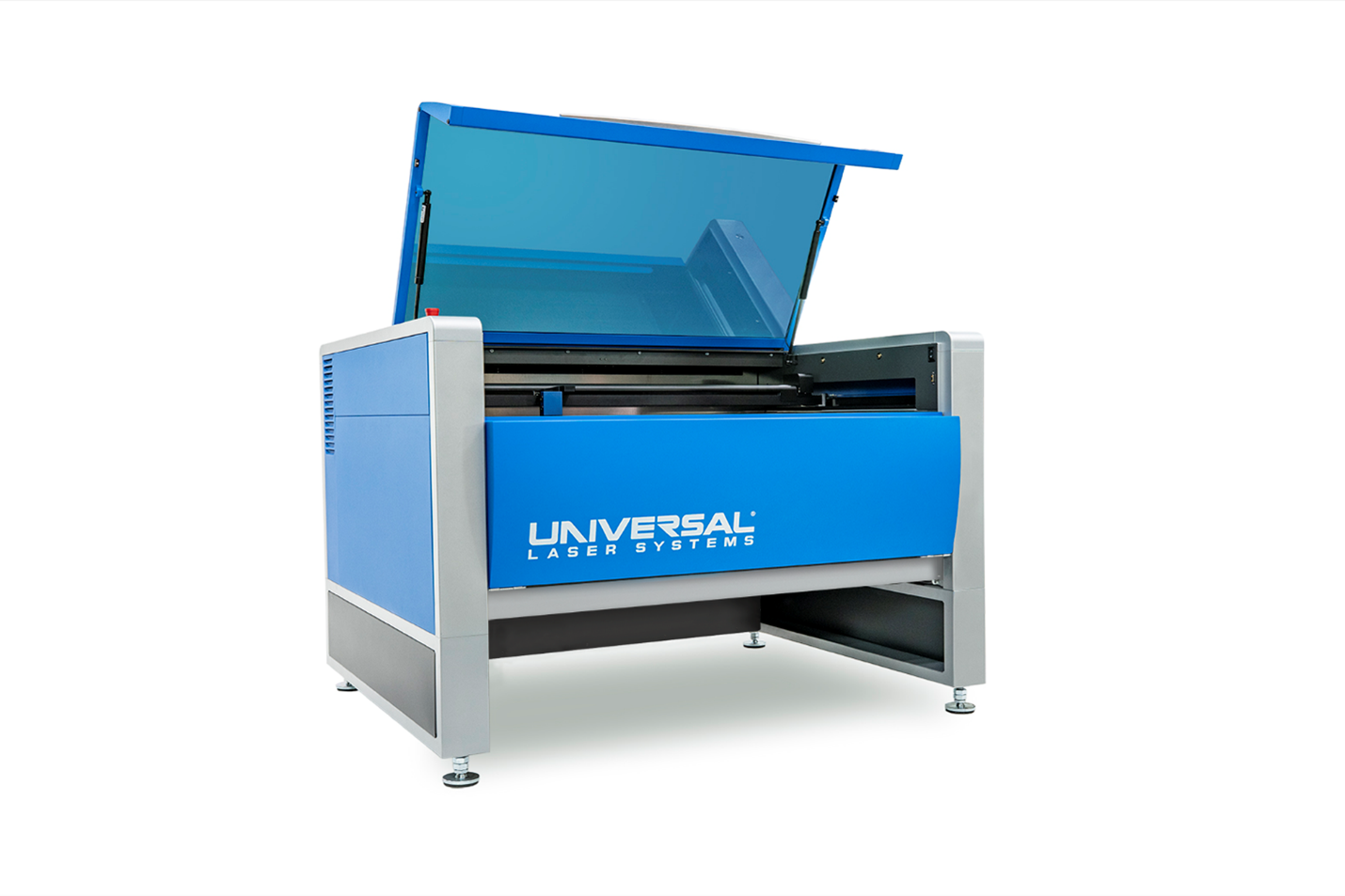

The ULTRA R9000 is the largest laser system in the ULTRA series with a 48 in x 24 in (1219 mm x 610 mm) material processing area.
The ULTRA R9000 can be configured in a CO2 only configuration (10.6 or 9.3 µm) or a multiple wavelength configuration (CO2 and fiber). A maximum of 300 watts of laser power is supported in a CO2 only configuration. A maximum of 150 watts CO2 and 50 watts fiber is supported in a multiple wavelength configuration.
KEY FEATURES AND CAPABILITIES
• Supports two lasers – (2) CO2 sources or (1) CO2 and (1) fiber laser source
• Patented Multi-Wave Hybrid technology
• Supports material thickness up to 12 in (305 mm)
• Precision Material Independent Autofocus
• Patented Controllable Laser Power Density Optics
• Programmable Gas Assist
• Laser System Manager control software
• Intelligent Materials Database
• Rapid Reconfiguration technology Configuration Components Available
• Multi-Camera Vision and Registration
• Patented SuperSpeed technology
• 21 in (533 mm) Touch Screen Control Panel
• Fire Suppression
• Automation Interface
• UAC 4000 Air Filtration
SPECIFICATIONS
-
Material Processing Envelope (X,Y,Z)
48 x 24 x 12 in. (1219 x 610 x 305 mm)
-
Maximum Effective Raster Processing Speed
Equivalent to more than 200 in./sec (equivalent to more than 5080 mm/sec); Requires SuperSpeed™ configuration
-
Multiple Laser Support / Maximum Laser Power

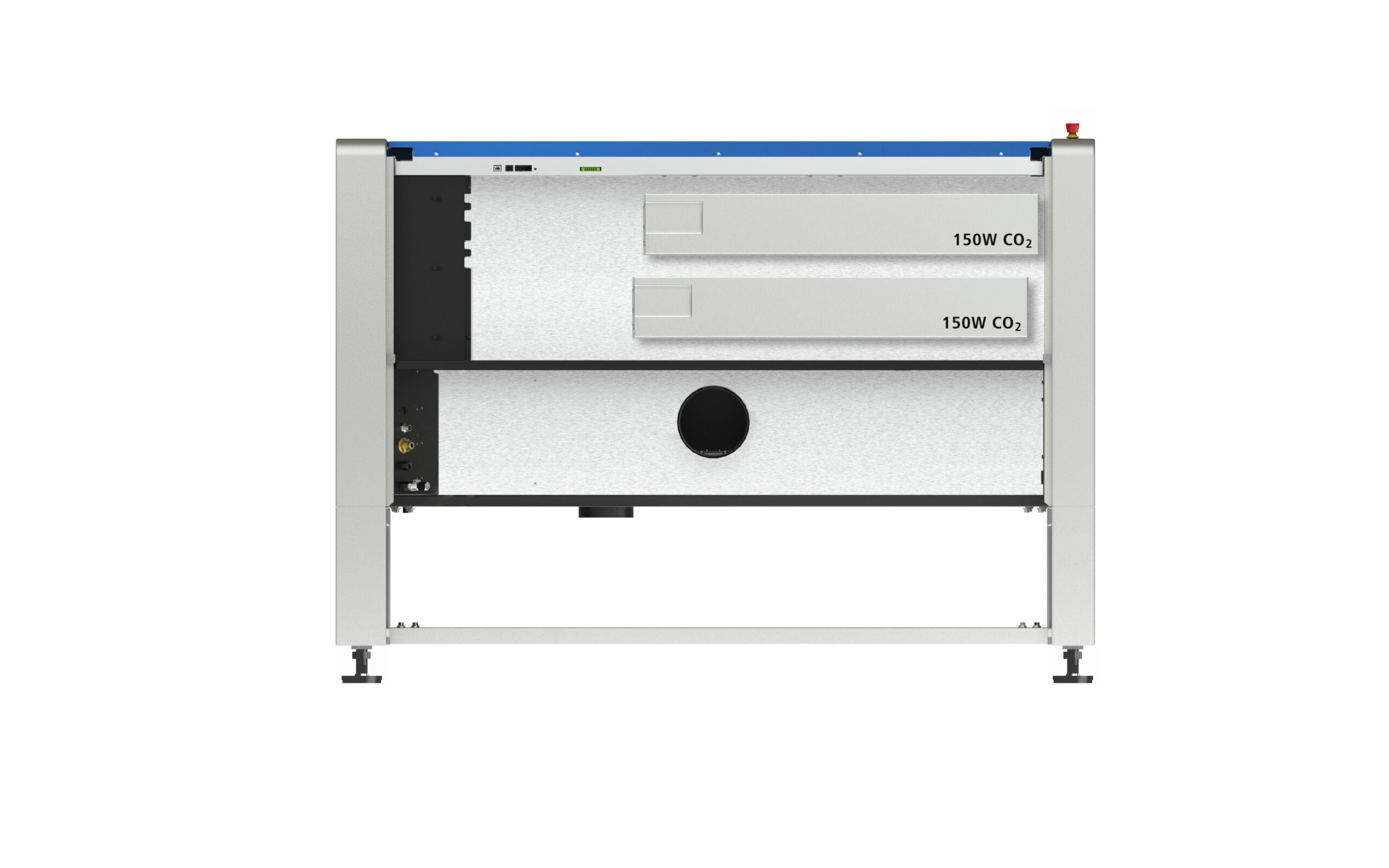

Up to 300 watts with (2) CO2 laser sources; Up to 150 watts CO2 and 50 watts fiber in a multiple wavelength configuration; Supports Rapid Reconfiguration™ of CO2 lasers
-
Wavelengths / Laser Sources Available
10.6 μm CO2: 10, 30, 40, 50, 60, 75 and 150 watt laser sources 9.3 μm CO2: 10, 30, 50 and 75 watt laser sources 1.06 μm Fiber: 50 watt laser source
-
System External Dimensions
Width: 71.00 in. (1803 mm) without Control Panel Depth: 46.32 in. (1177 mm) Height: 48.00 in. (1219 mm) to top of enclosure e-stop
-
Weight
500 lbs. (227 kg)
-
Power Requirements
220V-240V/16A (300 watt configuration requires high power kit and 25A)
-
Exhaust Requirements
Intelligent Air Filtration (UAC 4000) or External Exhaust Blower capable of >700 CFM at 6 in. WG Static Pressure (1190 m3/Hr. at 1.5 kPa); 6 in. (152 mm) Exhaust Port
-
Computer Requirements
Minimum: Intel i3 processor (or equivalent) with at least 8 GB of memory, Windows 10/11 operating system and connection to laser system with USB cable; Not required if configured with available 21” Touch Screen Control Panel
-
Laser Safety Classification
Class 1 for material processing lasers; Class 2 overall due to red laser pointer; Can convert to Class 4 with optional Class 4 module
